Low Voltage Motors

low voltage electric motors Western Australia
low volts elec motors

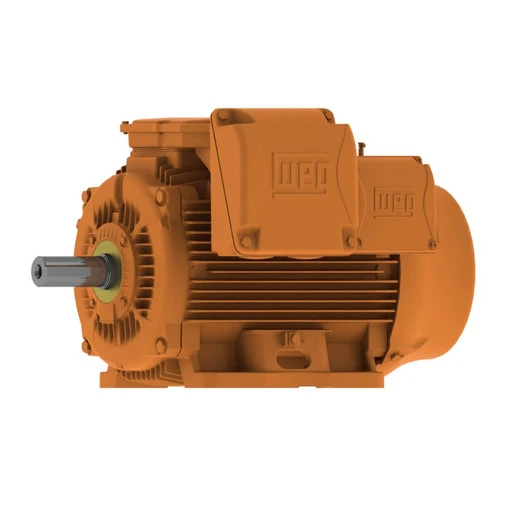

Mining Motors

Standard Features

  • Power: 0.18kW to 500kW
  • Number of Poles: 2 to 8
  • Frame Sizes: 63 to 355
  • Efficiency Class: IE3 High Efficiency
  • Insulation Class: Class H (80°C temperature rise)
  • Protection Rating: IP66
  • Space Heater: Included
  • Separate Auxiliary Terminal Box: Frame 160M and larger
  • Colour: Safety Orange
  • Cooling Method: TEFC (Totally Enclosed Fan Cooled)
  • Frame, Fan, Terminal Box and End Shields Material: FC-200 Cast Iron
  • Fan Cover Material: Steel sheet (Frames 63 to 80), FC-200 Cast Iron (Frame 90 and above)
  • Shaft Material: AISI 1040/1045 Steel (Frames 63 to 315S/M), AISI 4140 Steel (Frames 315L to 355A/B)
  • Thermal Protection: 155°C, 180°C Thermistor

Optional Features

  • Brake motors
  • Other voltage ratings
  • Double shaft extensions
  • Additional winding or bearing temperature sensors
  • Provision for SPM vibration sensors (Frames 160M to 355A/B)
  • Plastic or conductive plastic cooling fan
  • Plastic, brass or stainless-steel cable glands
  • Alternative paint systems
  • Stainless steel shaft (up to Frame 200)
  • Grease discharge through the fan cover
  • FF, D and C-DIN flange options

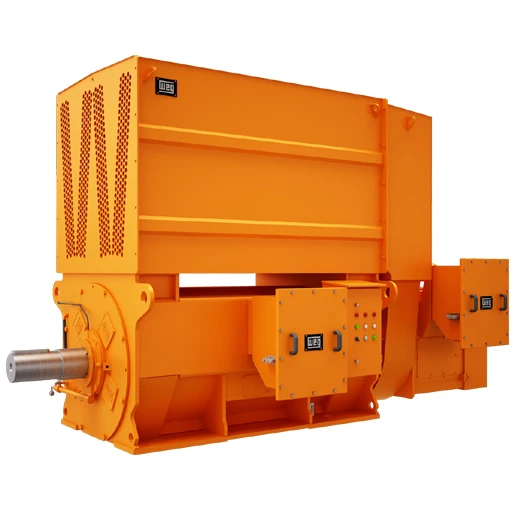

Large Motors

  • Squirrel cage motors and Wound-rotor motors
  • Rated output: 250 up to 10,000 kW
  • Frame: 355 up to 1,000 (IEC)
  • Voltage: 400V up to 13,800 V
  • Number of poles: 2 to 14 (squirrel cage motors) 4 to 14 (wound-rotor motors)
  • Insulation: Class H
  • Degree of protection: IP66
  • Standards: IEC/NEMA
  • Variable speed compliant
  • Integrated control system for motors with liftable brush holders
